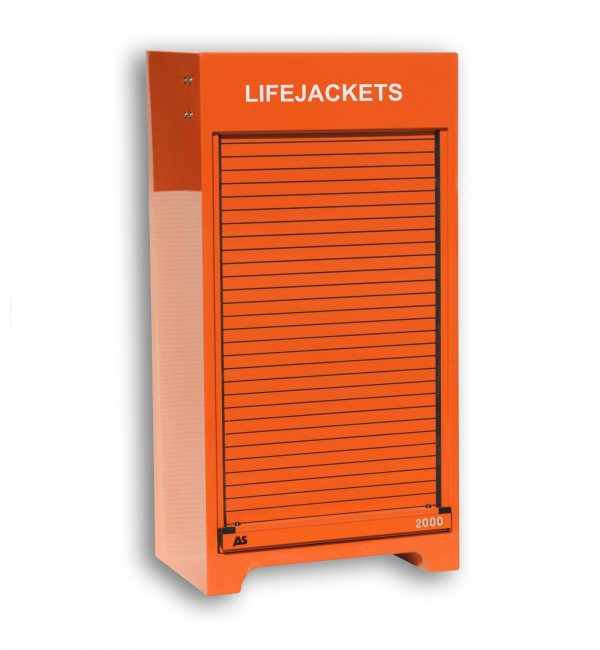

20 x Automatic life jacket cabinet (RS250LJ)

Dimensions: Height x width x depth: 1765 x 903 x 460 mm                               (69.49 x 35.55 x 18.11″)

Aperture: 1223H x 745W mm (48.15 x 29.33″)

Internal depth: 404 mm (15.91″)

Weight: 60Kg 132Lb

The RS250LJ is fitted with 4 automatic life jacket hangers for the storage of 20 automatic life jackets (not in vacuum or foil bags). Exact capacity depends on model being stored. It is features a superb AS roller shutter door making access to the contents possible where there would not be room to open a conventional door so ideal for tight spaces. . These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

Typical uses

Fitted with 4 automatic life jacket hangers for the storage of automatic life jackets (not in vacuum or foil bags).
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hangers:
Composite
RS Roller shutter door:
Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents

RS250LJDatasheet 2020

Typical uses

Fitted with 4 automatic life jacket hangers for the storage of automatic life jackets (not in vacuum or foil bags).
designed to cope with extreme environments offshore.
It is widely used by the world's top energy companies due to it's durability

Material specification
Colour: Orange RAL 2009
Material Lloyds approved composites with UV Stabilised gelcoat
Hangers:
Composite
RS Roller shutter door:
Aluminium
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites
Heating and insulation
vents

RS250LJDatasheet 2020

Additional information

Dimensions

1765 x 903 x 460 mm (69.49 x 35.55 x 18.11")

Aperture

1223 x 745 mm (48.15 x 29.33")

Manufacturer

UK
